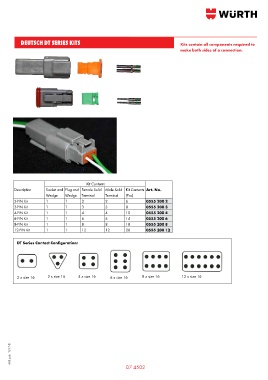

DEUTSCH DT SERIES KITS Kits contain all components required to

make both sides of a connection.

Kit Contents
Description Socket and Plug and Female Solid Male Solid Kit Contents Art. No.
Wedge Wedge Terminal Terminal (Pcs)
2-PIN Kit 1 1 2 2 6 0555 200 2
3-PIN Kit 1 1 3 3 8 0555 200 3
4-PIN Kit 1 1 4 4 10 0555 200 4
6-PIN Kit 1 1 6 6 14 0555 200 6
8-PIN Kit 1 1 8 8 18 0555 200 8
12-PIN Kit 1 1 12 12 26 0555 200 12

DT Series Contact Configuration:

2 x size 16 3 x size 16 4 x size 16 6 x size 16 8 x size 16 12 x size 16
