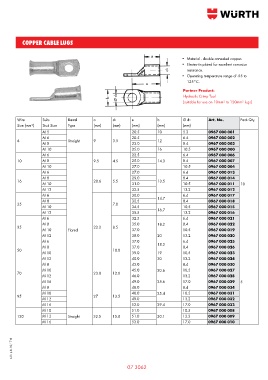

Page 666 - Wurth Total Catalogue

COPPER CABLE LUGS

a
• Material - double annealed copper.
• Electro-tin plated for excellent corrosion
d₁ resistance.
• Operating temperature range of -55 to
e 125°C.
Partner Product:

b Ø d₂ Hydraulic Crimp Tool
(suitable for use on 10mm² to 120mm² lugs)

Wire Suits Barrel a d₁ e b Ø d₂ Art. No. Pack Qty.
Size (mm²) Stud Size Type (mm) (mm) (mm) (mm) (mm)
M 5 20.5 10 5.3 0967 000 001
M 6 20.5 6.4 0967 000 002
6 Straight 9 3.5 12
M 8 23.0 8.4 0967 000 003
M 10 25.0 16 10.5 0967 000 000
M 6 22.5 6.4 0967 000 006
10 M 8 9.5 4.5 25.0 14.3 8.4 0967 000 007
M 10 27.0 10.5 0967 000 004
M 6 27.0 6.4 0967 000 013
M 8 29.0 8.4 0967 000 014
16 20.6 5.5 13.5
M 10 31.0 10.5 0967 000 011 10
M 12 32.5 13.2 0967 000 012
M 6 30.0 14.7 6.4 0967 000 017
M 8 32.5 8.4 0967 000 018
25 7.0
M 10 34.5 10.5 0967 000 015
M 12 35.5 16.7 13.2 0967 000 016
M 6 32.5 6.4 0967 000 021
M 8 35.0 18.2 8.4 0967 000 022
35 22.2 8.5
M 10 Flared 37.0 10.5 0967 000 019
M 12 38.0 20 13.2 0967 000 020
M 6 37.0 18.2 6.4 0967 000 025
M 8 37.0 8.4 0967 000 026
50 10.0
M 10 39.0 19 10.5 0967 000 023
M 12 40.0 20 13.2 0967 000 024
M 8 43.0 8.4 0967 000 030
M 10 45.0 20.6 10.5 0967 000 027
70 23.8 12.0
M 12 46.0 13.2 0967 000 028
M 16 49.0 25.6 17.0 0967 000 029 5
M 8 48.0 8.4 0967 000 034
M 10 48.0 25.4 10.5 0967 000 031
95 27 13.5
M 12 49.0 13.2 0967 000 032
M 16 52.0 29.4 17.0 0967 000 033
M 10 51.0 10.5 0967 000 008
120 M 12 Straight 32.5 15.0 51.0 30.1 13.2 0967 000 009
M 16 53.0 17.0 0967 000 010
