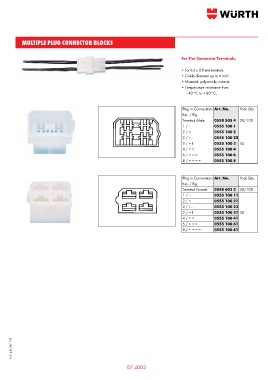

Page 669 - Wurth Total Catalogue

MULTIPLE PLUG CONNECTOR BLOCKS

For Flat Connector Terminals.

• For 6.3 x 0.8 mm terminals.
• Cable diameter up to 6 mm . 2
• Material: polyamide, natural.
• Temperature resistance from
- 40°C to + 80°C.

Plug in Connections Art. No. Pack Qty.
No. / Fig.
Terminal Male 0558 505 4 50/100
1 / – 0555 100 1
2 / = 0555 100 2
2 / I – 0555 100 22
3 / = I 0555 100 3 10
4 / = = 0555 100 4
6 / = = = 0555 100 6
8 / = = = = 0555 100 8

Plug in Connections Art. No. Pack Qty.
No. / Fig.
Terminal Female 0558 603 2 50/100
1 / – 0555 100 11
2 / = 0555 100 21
2 / I – 0555 100 23
3 / = I 0555 100 31 10
4 / = = 0555 100 41
6 / = = = 0555 100 61
8 / = = = = 0555 100 81
