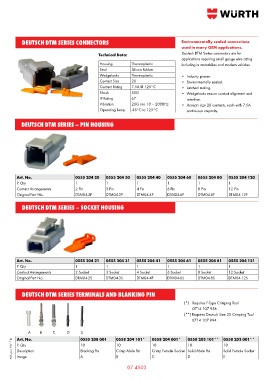

Page 672 - Wurth Total Catalogue

DEUTSCH DTM SERIES CONNECTORS Environmentally sealed connections
used in many OEM applications.
Technical Data: Deutsch DTM Series connectors are for
applications requiring small gauge wire sizing
Housing Thermoplastic including in motorbikes and modern vehicles.
Seal Silicon Rubber
Wedgelocks Thermoplastic • Industry proven.
Contact Size 20 • Environmentally sealed.
Contact Rating 7.5A @ 125°C • Latched mating.
Shock 50G • Wedgelocks ensure contact alignment and
IP Rating 67 retention.
Vibration 20G rms 10 – 2000Hz • Accepts size 20 contacts, each with 7.5A
Operating Temp. -55°C to 125°C continuous capacity.

DEUTSCH DTM SERIES – PIN HOUSING

Art. No. 0555 204 20 0555 204 30 0555 204 40 0555 204 60 0555 204 80 0555 204 120
P. Qty 1 1 1 1 1 1
Contact Arrangements 2 Pin 3 Pin 4 Pin 6 Pin 8 Pin 12 Pin
Original Part No. DTM04-2P DTM04-3P DTM04-4P DTM04-6P DTM04-8P DTM04-12P

DEUTSCH DTM SERIES – SOCKET HOUSING

Art. No. 0555 204 21 0555 204 31 0555 204 41 0555 204 61 0555 204 81 0555 204 121
P. Qty 1 1 1 1 1 1
Contact Arrangements 2 Socket 3 Socket 4 Socket 6 Socket 8 Socket 12 Socket
Original Part No. DTM04-2S DTM04-3S DTM04-4P DTM04-6S DTM04-8S DTM04-12S

DEUTSCH DTM SERIES TERMINALS AND BLANKING PIN

(*) Requires F-Type Crimping Tool
0714 107 956
(**) Requires Deutsch Size 20 Crimping Tool
0714 107 994

A B C D 0555 208 001 0558 204 101* 0558 204 001* 0558 203 101** 0558 203 001**
E
Art. No.
AUS. pub. 10/17 © P. Qty 10 10 10 10 10
Description
Crimp Male Pin
Blanking Pin
Crimp Female Socket Solid Male Pin
Solid Female Socket
E
D
C
B
A
