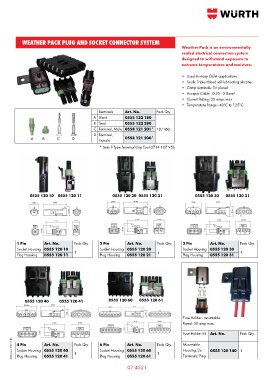

Page 675 - Wurth Total Catalogue

WEATHER PACK PLUG AND SOCKET CONNECTOR SYSTEM
Weather Pack is an environmentally
sealed electrical connection system
designed to withstand exposure to
extreme temperatures and moisture.

• Used in many OEM applications.
• Seals: Triple-ribbed self-lubricating silicone.
• Crimp terminals: Tin plated.
• Accepts Cable: 0.35 - 3.0mm².
• Current Rating: 20 amps max.
• Temperature Range: -40ºC to 125ºC.
Terminals Art. No. Pack Qty.
A Blank 0555 122 180
B Seal 0555 122 280
C Terminal, Male 0558 121 201* 10/100
D Terminal,
A B C D Female 0558 121 200*
* Suits F-Type Terminal Crip Tool 0714 107 956

0555 120 10 0555 120 11 0555 120 20 0555 120 21 0555 120 30 0555 120 31

1 Pin Art. No. Pack Qty. 2 Pin Art. No. Pack Qty. 3 Pin Art. No. Pack Qty.
Socket Housing 0555 120 10 Socket Housing 0555 120 20 Socket Housing 0555 120 30
Plug Housing 0555 120 11 1 Plug Housing 0555 120 21 1 Plug Housing 0555 120 31 1

0555 120 40 0555 120 41 0555 120 60 0555 120 61

Fuse Holder - mountable
Rated: 30 amp max.

Fuse Holder Kit Art. No. Pack Qty.
AUS. pub. 10/17 © 4 Pin Art. No. Pack Qty. 6 Pin Art. No. Pack Qty. Mountable 0555 120 140 1
Housing, 2x
Socket Housing 0555 120 60
Socket Housing 0555 120 40
1
1
0555 120 61
Terminals, Plug
0555 120 41
Plug Housing
Plug Housing
