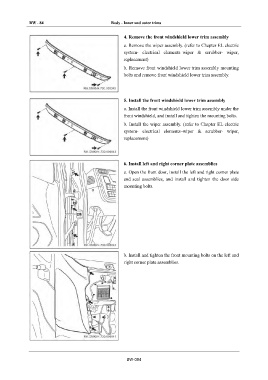

BW - 84 Body - Inner and outer trims

4. Remove the front windshield lower trim assembly
a. Remove the wiper assembly. (refer to Chapter EL electric
system- electrical elements–wiper & scrubber- wiper,
replacement)
b. Remove front windshield lower trim assembly mounting
bolts and remove front windshield lower trim assembly.

5. Install the front windshield lower trim assembly

a. Install the front windshield lower trim assembly under the
front windshield, and install and tighten the mounting bolts.
b. Install the wiper assembly. (refer to Chapter EL electric
system- electrical elements–wiper & scrubber- wiper,
replacement)

6. Install left and right corner plate assemblies
a. Open the front door, install the left and right corner plate
and seal assemblies, and install and tighten the door side
mounting bolts.

b. Install and tighten the front mounting bolts on the left and
right corner plate assemblies.

BW-084
