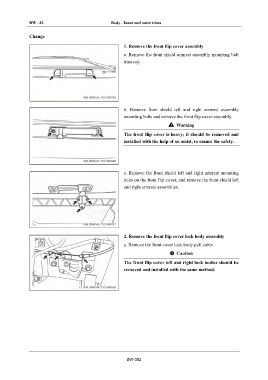

BW - 82 Body - Inner and outer trims

Change
1. Remove the front flip cover assembly

a. Remove the front shield armrest assembly mounting bolt
trim cap.

b. Remove front shield left and right armrest assembly
mounting bolts and remove the front flip cover assembly.
Warning

The front flip cover is heavy; it should be removed and
installed with the help of an assist, to ensure the safety.

c. Remove the front shield left and right armrest mounting
bolts on the front flip cover, and remove the front shield left
and right armrest assemblies.

2. Remove the front flip cover lock body assembly
a. Remove the front cover lock body pull cable.

Caution
The front flip cover left and right lock bodies should be
removed and installed with the same method.

BW-082
