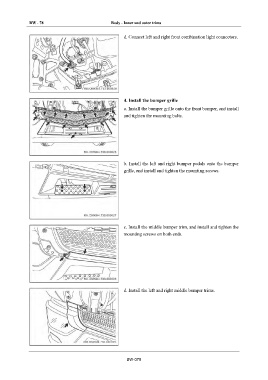

Page 1316 - Foton Workshop Manual - Auman EST-M

BW - 78 Body - Inner and outer trims

d. Connect left and right front combination light connectors.

4. Install the bumper grille

a. Install the bumper grille onto the front bumper, and install
and tighten the mounting bolts.

b. Install the left and right bumper pedals onto the bumper
grille, and install and tighten the mounting screws.

c. Install the middle bumper trim, and install and tighten the
mounting screws on both ends.

d. Install the left and right middle bumper trims.

BW-078
