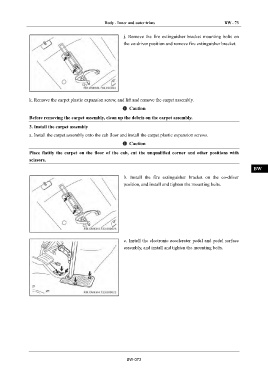

Body - Inner and outer trims BW - 73

j. Remove the fire extinguisher bracket mounting bolts on IN
the co-driver position and remove fire extinguisher bracket.
DI

EG

TR

k. Remove the carpet plastic expansion screw, and lift and remove the carpet assembly.
AX
Caution
Before removing the carpet assembly, clean up the debris on the carpet assembly. FR

3. Install the carpet assembly
a. Install the carpet assembly onto the cab floor and install the carpet plastic expansion screws. ST
Caution

Place flattly the carpet on the floor of the cab, cut the unqualified corner and other positions with BR
scissors.
BW

b. Install the fire extinguisher bracket on the co-driver
position, and install and tighten the mounting bolts. EL

c. Install the electronic accelerator pedal and pedal surface

assembly, and install and tighten the mounting bolts.

BW-073
