Page 1313 - Foton Workshop Manual - Auman EST-M
P. 1313
Body - Inner and outer trims BW - 75

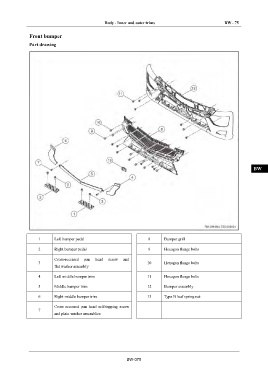

Front bumper IN
Part drawing
DI
EG
TR
AX
FR
ST
BR
BW
EL
1 Left bumper pedal 8 Bumper grill
2 Right bumper pedal 9 Hexagon flange bolts
Cross-recessed pan head screw and
3 10 Hexagon flange bolts
flat washer assembly
4 Left middle bumper trim 11 Hexagon flange bolts
5 Middle bumper trim 12 Bumper assembly
6 Right middle bumper trim 13 Type B leaf spring nut
Cross recessed pan head self-tapping screw
7
and plain washer assemblies
BW-075
