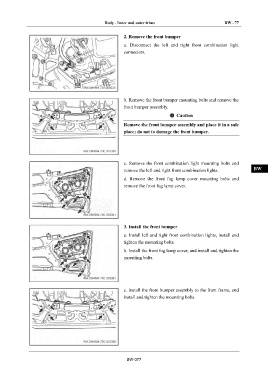

Body - Inner and outer trims BW - 77

2. Remove the front bumper IN
a. Disconnect the left and right front combination light
connectors. DI

EG

TR

b. Remove the front bumper mounting bolts and remove the
AX
front bumper assembly.

Caution
FR
Remove the front bumper assembly and place it in a safe

place; do not to damage the front bumper.
ST

BR

c. Remove the front combination light mounting bolts and
remove the left and right front combination lights. BW

d. Remove the front fog lamp cover mounting bolts and
remove the front fog lamp cover. EL

3. Install the front bumper

a. Install left and right front combination lights, install and
tighten the mounting bolts.
b. Install the front fog lamp cover, and install and tighten the
mounting bolts.

c. Install the front bumper assembly to the front frame, and

install and tighten the mounting bolts.

BW-077
