Body - Inner and outer trims BW - 81

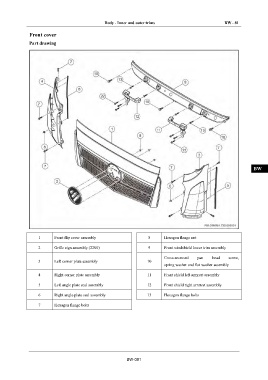

Front cover IN
Part drawing
DI
EG
TR
AX
FR
ST
BR
BW
EL
1 Front flip cover assembly 8 Hexagon flange nut
2 Grille sign assembly (2200) 9 Front windshield lower trim assembly
Cross-recessed pan head screw,
3 Left corner plate assembly 10
spring washer and flat washer assembly
4 Right corner plate assembly 11 Front shield left armrest assembly
5 Left angle plate seal assembly 12 Front shield right armrest assembly
6 Right angle plate seal assembly 13 Hexagon flange bolts
7 Hexagon flange bolts
BW-081
