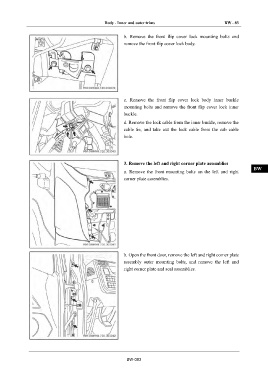

Page 1321 - Foton Workshop Manual - Auman EST-M

Body - Inner and outer trims BW - 83

b. Remove the front flip cover lock mounting bolts and IN
remove the front flip cover lock body.
DI

EG

TR

c. Remove the front flip cover lock body inner buckle
AX
mounting bolts and remove the front flip cover lock inner

buckle.
FR
d. Remove the lock cable from the inner buckle, remove the

cable tie, and take out the lock cable from the cab cable
hole. ST

BR

3. Remove the left and right corner plate assemblies
BW
a. Remove the front mounting bolts on the left and right

corner plate assemblies.
EL

b. Open the front door, remove the left and right corner plate
assembly outer mounting bolts, and remove the left and
right corner plate and seal assemblies.

BW-083
