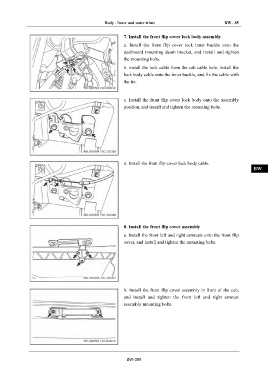

Body - Inner and outer trims BW - 85

7. Install the front flip cover lock body assembly IN
a. Install the front flip cover lock inner buckle onto the
dashboard mounting deam bracket, and install and tighten DI
the mounting bolts.
b. install the lock cable from the cab cable hole, install the EG
lock body cable onto the inner buckle, and fix the cable with

the tie.
TR

c. Install the front flip cover lock body onto the assembly
AX
position, and install and tighten the mounting bolts.

FR

ST

BR

d. Install the front flip cover lock body cable.
BW

EL

8. Install the front flip cover assembly

a. Install the front left and right armrests onto the front flip
cover, and install and tighten the mounting bolts.

b. Install the front flip cover assembly in front of the cab,

and install and tighten the front left and right armrest

assembly mounting bolts.

BW-085
