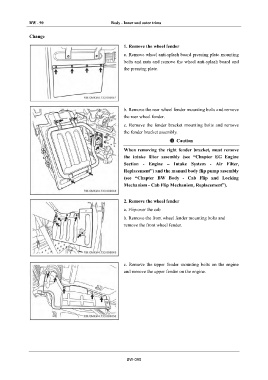

Page 1328 - Foton Workshop Manual - Auman EST-M

BW - 90 Body - Inner and outer trims

Change
1. Remove the wheel fender

a. Remove wheel anti-splash board pressing plate mounting
bolts and nuts and remove the wheel anti-splash board and
the pressing plate.

b. Remove the rear wheel fender mounting bolts and remove
the rear wheel fender.
c. Remove the fender bracket mounting bolts and remove
the fender bracket assembly.
Caution

When removing the right fender bracket, must remove
the intake filter assembly (see “Chapter EG Engine
Section - Engine – Intake System - Air Filter,
Replacement”) and the manual body flip pump assembly
(see “Chapter BW Body - Cab Flip and Locking
Mechanism - Cab Flip Mechanism, Replacement”).

2. Remove the wheel fender

a. Flip-over the cab
b. Remove the front wheel fender mounting bolts and
remove the front wheel fender.

c. Remove the upper fender mounting bolts on the engine
and remove the upper fender on the engine.

BW-090
