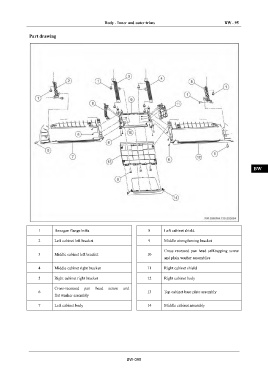

Body - Inner and outer trims BW - 95
Part drawing IN
DI
EG
TR
AX
FR
ST
BR
BW
EL
1 Hexagon flange bolts 8 Left cabinet shield
2 Left cabinet left bracket 9 Middle strengthening bracket
Cross recessed pan head self-tapping screw
3 Middle cabinet left bracket 10
and plain washer assemblies
4 Middle cabinet right bracket 11 Right cabinet shield
5 Right cabinet right bracket 12 Right cabinet body
Cross-recessed pan head screw and
6 13 Top cabinet base plate assembly
flat washer assembly
7 Left cabinet body 14 Middle cabinet assembly
