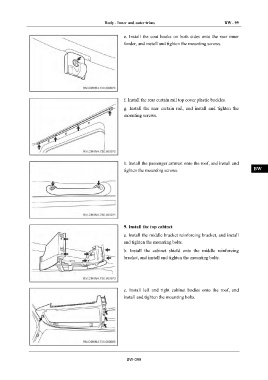

Body - Inner and outer trims BW - 99

e. Install the coat hooks on both sides onto the rear inner IN
fender, and install and tighten the mounting screws.
DI

EG

TR

f. Install the rear curtain rail top cover plastic buckles.
AX
g. Install the rear curtain rail, and install and tighten the

mounting screws.
FR

ST

BR

h. Install the passenger armrest onto the roof, and install and
tighten the mounting screws. BW

EL

9. Install the top cabinet

a. Install the middle bracket reinforcing bracket, and install
and tighten the mounting bolts.
b. Install the cabinet shield onto the middle reinforcing
bracket, and install and tighten the mounting bolts.

c. Install left and right cabinet bodies onto the roof, and

install and tighten the mounting bolts.

BW-099
