Body - Inner and outer trims BW - 101

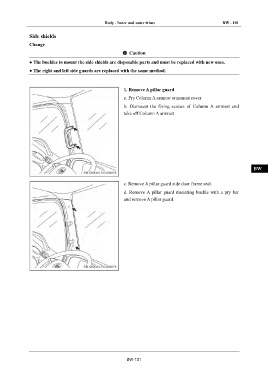

Side shields IN
Change
Caution DI

● The buckles to mount the side shields are disposable parts and must be replaced with new ones.
EG
● The right and left side guards are replaced with the same method.

TR
1. Remove A pillar guard

a. Pry Column A armrest ornament cover
AX
b. Dismount the fixing screws of Column A armrest and

take off Column A armrest
FR

ST

BR

BW

c. Remove A pillar guard side door frame seal. EL

d. Remove A pillar guard mounting buckle with a pry bar
and remove A pillar guard.

BW-101
