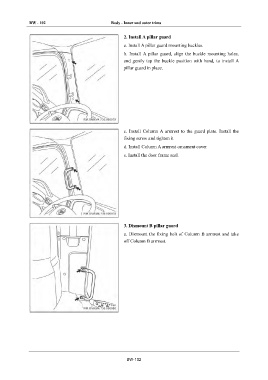

BW - 102 Body - Inner and outer trims

2. Install A pillar guard
a. Install A pillar guard mounting buckles.
b. Install A pillar guard, align the buckle mounting holes,
and gently tap the buckle position with hand, to install A
pillar guard in place.

c. Install Column A armrest to the guard plate. Install the
fixing screw and tighten it
d. Install Column A armrest ornament cover
e. Install the door frame seal.

3. Dismount B pillar guard
a. Dismount the fixing bolt of Column B armrest and take
off Column B armrest.

BW-102
