Body - Inner and outer trims BW - 107

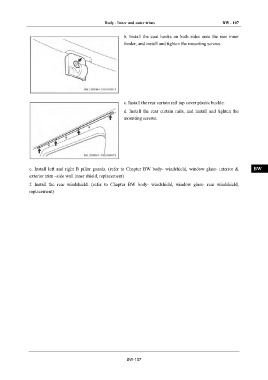

b. Install the coat hooks on both sides onto the rear inner IN
fender, and install and tighten the mounting screws.
DI
EG
TR
c. Install the rear curtain rail top cover plastic buckle. AX
d. Install the rear curtain rails, and install and tighten the
mounting screws. FR
ST
BR
e. Install left and right B pillar guards. (refer to Chapter BW body- windshield, window glass- interior & BW
exterior trim –side wall inner shield, replacement)
f. Install the rear windshield. (refer to Chapter BW body- windshield, window glass- rear windshield, EL
replacement)
BW-107
