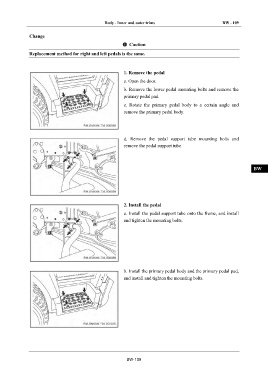

Body - Inner and outer trims BW - 109

Change IN
Caution
Replacement method for right and left pedals is the same. DI

EG
1. Remove the pedal
a. Open the door.
TR
b. Remove the lower pedal mounting bolts and remove the
primary pedal pad.
AX
c. Rotate the primary pedal body to a certain angle and
remove the primary pedal body.
FR

ST
d. Remove the pedal support tube mounting bolts and
remove the pedal support tube.
BR

BW

EL

2. Install the pedal

a. Install the pedal support tube onto the frame, and install
and tighten the mounting bolts.

b. Install the primary pedal body and the primary pedal pad,
and install and tighten the mounting bolts.

BW-109
