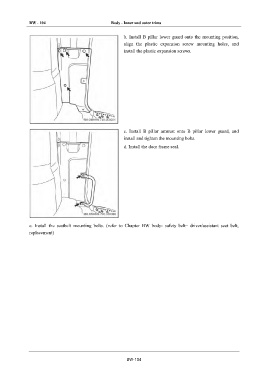

Page 1342 - Foton Workshop Manual - Auman EST-M

BW - 104 Body - Inner and outer trims

b. Install B pillar lower guard onto the mounting position,
align the plastic expansion screw mounting holes, and
install the plastic expansion screws.

c. Install B pillar armrest onto B pillar lower guard, and
install and tighten the mounting bolts.
d. Install the door frame seal.

e. Install the seatbelt mounting bolts. (refer to Chapter BW body- safety belt– driver/assistant seat belt,
replacement)

BW-104
