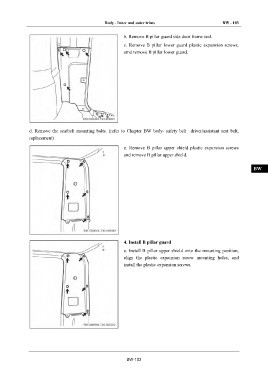

Body - Inner and outer trims BW - 103
b. Remove B pillar guard side door frame seal. IN
c. Remove B pillar lower guard plastic expansion screws,
amd remove B pillar lower guard. DI
EG
TR
AX
FR
d. Remove the seatbelt mounting bolts. (refer to Chapter BW body- safety belt– driver/assistant seat belt,
ST
replacement)
e. Remove B pillar upper shield plastic expansion screws
BR
and remove B pillar upper shield.
BW
EL
4. Install B pillar guard
a. Install B pillar upper shield onto the mounting position,
align the plastic expansion screw mounting holes, and
install the plastic expansion screws.
BW-103
