BW - 112 Body - Inner and outer trims

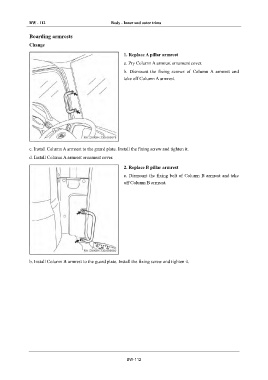

Boarding armrests
Change

1. Replace A pillar armrest
a. Pry Column A armrest ornament cover.
b. Dismount the fixing screws of Column A armrest and
take off Column A armrest.

c. Install Column A armrest to the guard plate. Install the fixing screw and tighten it.
d. Install Column A armrest ornament cover.

2. Replace B pillar armrest
a. Dismount the fixing bolt of Column B armrest and take
off Column B armrest.

b. Install Column B armrest to the guard plate. Install the fixing screw and tighten it.

BW-112
