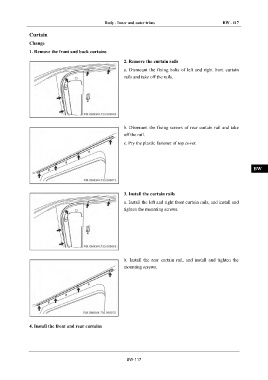

Body - Inner and outer trims BW - 117

Curtain IN

Change
1. Remove the front and back curtains DI
2. Remove the curtain rails

a. Dismount the fixing bolts of left and right front curtain EG
rails and take off the rails.
TR

AX

FR
b. Dismount the fixing screws of rear curtain rail and take
off the rail. ST
c. Pry the plastic fastener of top cover.

BR

BW

EL
3. Install the curtain rails

a. Install the left and right front curtain rails, and install and
tighten the mounting screws.

b. Install the rear curtain rail, and install and tighten the
mounting screws.

4. Install the front and rear curtains

BW-117
