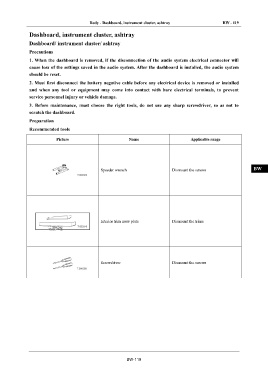

Body - Dashboard, instrument cluster, ashtray BW - 119
Dashboard, instrument cluster, ashtray IN
Dashboard/ instrument cluster/ ashtray
Precautions DI
1. When the dashboard is removed, if the disconnection of the audio system electrical connector will
cause loss of the settings saved in the audio system. After the dashboard is installed, the audio system EG
should be reset.
2. Must first disconnect the battery negative cable before any electrical device is removed or installed
TR
and when any tool or equipment may come into contact with bare electrical terminals, to prevent
service personnel injury or vehicle damage.
AX
3. Before maintenance, must choose the right tools, do not use any sharp screwdriver, so as not to
scratch the dashboard.
FR
Preparation
Recommended tools
ST
Picture Name Applicable range
BR
Speeder wrench Dismount the screws BW
EL
Interior trim crow plate Dismount the trims
Screwdriver Dismount the screws
BW-119
