BW - 120 Body - Dashboard, instrument cluster, ashtray

Dashboard

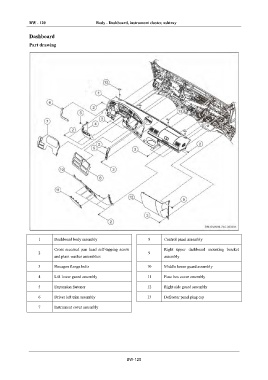

Part drawing

1 Dashboard body assembly 8 Control panel assembly

Cross recessed pan head self-tapping screw Right upper dashboard mounting bracket
2 9
and plain washer assemblies assembly
3 Hexagon flange bolts 10 Middle lower guard assembly

4 Lift lower guard assembly 11 Fuse box cover assembly

5 Expansion fastener 12 Right side guard assembly

6 Driver left trim assembly 13 Defroster panel plug cap

7 Instrument cover assembly
