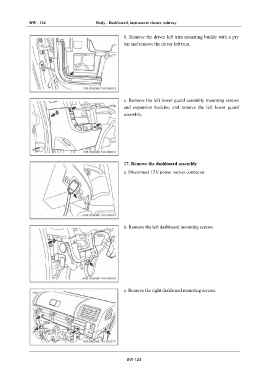

BW - 124 Body - Dashboard, instrument cluster, ashtray

b. Remove the driver left trim mounting buckle with a pry
bar and remove the driver left trim.

c. Remove the left lower guard assembly mounting screws
and expansion buckles, and remove the left lower guard
assembly.

17. Remove the dashboard assembly
a. Disconnect 12V power socket connector.

b. Remove the left dashboard mounting screws.

c. Remove the right dashboard mounting screws.

BW-124
