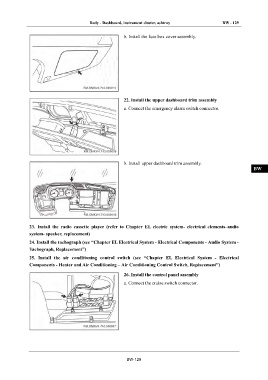

Page 1367 - Foton Workshop Manual - Auman EST-M
P. 1367
Body - Dashboard, instrument cluster, ashtray BW - 129
b. Install the fuse box cover assembly. IN
DI
EG
TR
22. Install the upper dashboard trim assembly
AX
a. Connect the emergency alarm switch connector.
FR
ST
BR
b. Install upper dashboard trim assembly.
BW
EL
23. Install the radio cassette player (refer to Chapter EL electric system- electrical elements–audio
system- speaker, replacement)
24. Install the tachograph (see “Chapter EL Electrical System - Electrical Components - Audio System -
Tachograph, Replacement”)
25. Install the air conditioning control switch (see “Chapter EL Electrical System - Electrical
Components - Heater and Air Conditioning – Air Conditioning Control Switch, Replacement”)
26. Install the control panel assembly
a. Connect the cruise switch connector.
BW-129
