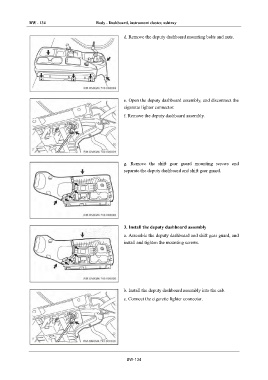

BW - 134 Body - Dashboard, instrument cluster, ashtray
d. Remove the deputy dashboard mounting bolts and nuts.
e. Open the deputy dashboard assembly, and disconnect the
cigarette lighter connector.
f. Remove the deputy dashboard assembly.
g. Remove the shift gear guard mounting screws and
separate the deputy dashboard and shift gear guard.
3. Install the deputy dashboard assembly
a. Assemble the deputy dashboard and shift gear guard, and
install and tighten the mounting screws.
b. Install the deputy dashboard assembly into the cab.
c. Connect the cigarette lighter connector.
BW-134
