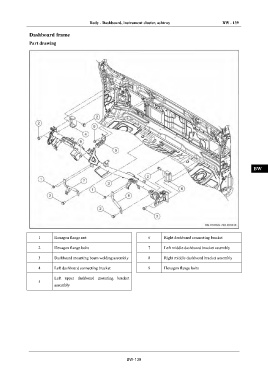

Body - Dashboard, instrument cluster, ashtray BW - 139
Dashboard frame IN
Part drawing
DI
EG
TR
AX
FR
ST
BR
BW
EL
1 Hexagon flange nut 6 Right dashboard connecting bracket
2 Hexagon flange bolts 7 Left middle dashboard bracket assembly
3 Dashboard mounting beam welding assembly 8 Right middle dashboard bracket assembly
4 Left dashboard connecting bracket 9 Hexagon flange bolts
Left upper dashboard mounting bracket
5
assembly
BW-139
