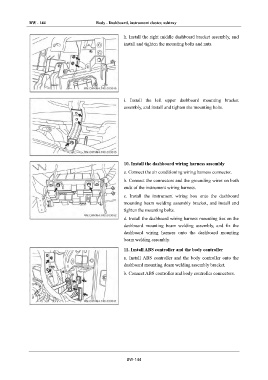

BW - 144 Body - Dashboard, instrument cluster, ashtray

h. Install the right middle dashboard bracket assembly, and
install and tighten the mounting bolts and nuts.

i. Install the left upper dashboard mounting bracket
assembly, and install and tighten the mounting bolts.

10. Install the dashboard wiring harness assembly
a. Connect the air conditioning wiring harness connector.

b. Connect the connectors and the grounding wires on both
ends of the instrument wiring harness.
c. Install the instrument wiring box onto the dashboard
mounting beam welding assembly bracket, and install and
tighten the mounting bolts.
d. Install the dashboard wiring harness mounting ties on the
dashboard mounting beam welding assembly, and fix the
dashboard wiring harness onto the dashboard mounting
beam welding assembly.

11. Install ABS controller and the body controller
a. Install ABS controller and the body controller onto the
dashboard mounting deam welding assembly bracket.
b. Connect ABS controller and body controller connectors.

BW-144
