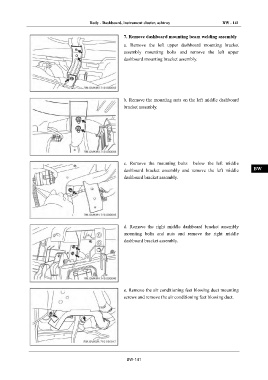

7. Remove dashboard mounting beam welding assembly IN
a. Remove the left upper dashboard mounting bracket
assembly mounting bolts and remove the left upper DI
dashboard mounting bracket assembly.
EG

TR

b. Remove the mounting nuts on the left middle dashboard
AX
bracket assembly.

FR

ST

BR

c. Remove the mounting bolts below the left middle
dashboard bracket assembly and remove the left middle BW
dashboard bracket assembly.
EL

d. Remove the right middle dashboard bracket assembly
mounting bolts and nuts and remove the right middle
dashboard bracket assembly.

e. Remove the air conditioning feet blowing duct mounting

screws and remove the air conditioning feet blowing duct.
