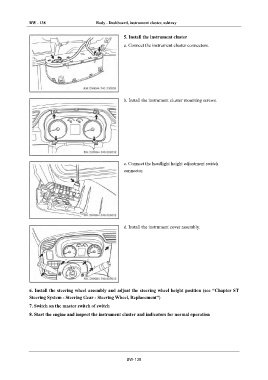

BW - 138 Body - Dashboard, instrument cluster, ashtray

5. Install the instrument cluster
a. Connect the instrument cluster connectors.

b. Install the instrument cluster mounting screws.

c. Connect the headlight height adjustment switch
connector.

d. Install the instrument cover assembly.

6. Install the steering wheel assembly and adjust the steering wheel height position (see “Chapter ST
Steering System - Steering Gear - Steering Wheel, Replacement”)
7. Switch on the master switch of switch

8. Start the engine and inspect the instrument cluster and indicators for normal operation

BW-138
