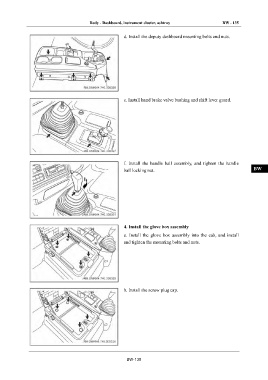

Page 1373 - Foton Workshop Manual - Auman EST-M
P. 1373
Body - Dashboard, instrument cluster, ashtray BW - 135
d. Install the deputy dashboard mounting bolts and nuts. IN
DI
EG
TR
e. Install hand brake valve bushing and shift lever guard.
AX
FR
ST
BR
f. Install the handle ball assembly, and tighten the handle
ball locking nut. BW
EL
4. Install the glove box assembly
a. Install the glove box assembly into the cab, and install
and tighten the mounting bolts and nuts.
b. Install the screw plug cap.
BW-135
