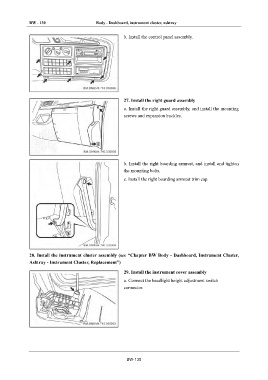

Page 1368 - Foton Workshop Manual - Auman EST-M

BW - 130 Body - Dashboard, instrument cluster, ashtray

b. Install the control panel assembly.

27. Install the right guard assembly

a. Install the right guard assembly, and install the mounting
screws and expansion buckles.

b. Install the right boarding armrest, and install and tighten
the mounting bolts.
c. Install the right boarding armrest trim cap.

28. Install the instrument cluster assembly (see “Chapter BW Body - Dashboard, Instrument Cluster,
Ashtray - Instrument Cluster, Replacement”)

29. Install the instrument cover assembly
a. Connect the headlight height adjustment switch
connector.

BW-130
