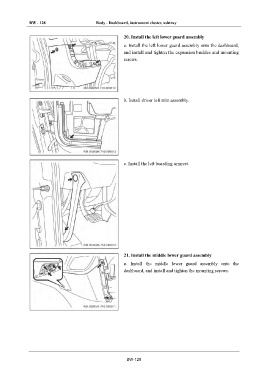

Page 1366 - Foton Workshop Manual - Auman EST-M

BW - 128 Body - Dashboard, instrument cluster, ashtray

20. Install the left lower guard assembly
a. Install the left lower guard assembly onto the dashboard,
and install and tighten the expansion buckles and mounting
screws.

b. Install driver left trim assembly.

c. Install the left boarding armrest.

21. Install the middle lower guard assembly
a. Install the middle lower guard assembly onto the
dashboard, and install and tighten the mounting screws.

BW-128
