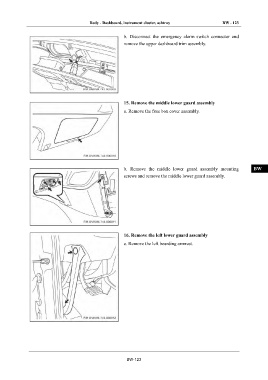

Body - Dashboard, instrument cluster, ashtray BW - 123
b. Disconnect the emergency alarm switch connector and IN
remove the upper dashboard trim assembly.
DI
EG
TR
15. Remove the middle lower guard assembly AX
a. Remove the fuse box cover assembly.
FR
ST
BR
b. Remove the middle lower guard assembly mounting BW
screws and remove the middle lower guard assembly.
EL
16. Remove the left lower guard assembly
a. Remove the left boarding armrest.
BW-123
