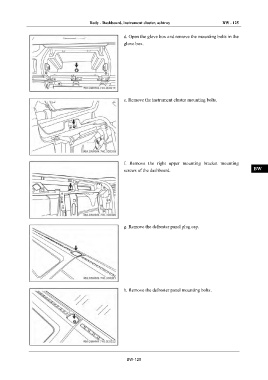

Body - Dashboard, instrument cluster, ashtray BW - 125
d. Open the glove box and remove the mounting bolts in the IN
glove box.
DI
EG
TR
e. Remove the instrument cluster mounting bolts.
AX
FR
ST
BR
f. Remove the right upper mounting bracket mounting
screws of the dashboard. BW
EL
g. Remove the defroster panel plug cap.
h. Remove the defroster panel mounting bolts.
BW-125
