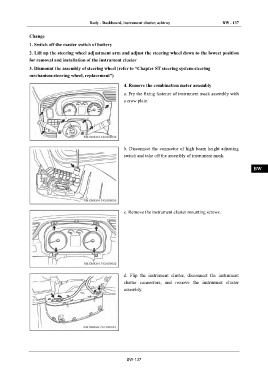

Body - Dashboard, instrument cluster, ashtray BW - 137

Change IN
1. Switch off the master switch of battery
2. Lift up the steering wheel adjustment arm and adjust the steering wheel down to the lowest position DI
for removal and installation of the instrument cluster
3. Dismount the assembly of steering wheel (refer to “Chapter ST steering system-steering EG
mechanism-steering wheel, replacement”)

4. Remove the combination meter assembly TR

a. Pry the fixing fastener of instrument mask assembly with
a crow plate. AX

FR

ST

b. Disconnect the connector of high beam height adjusting
BR
switch and take off the assembly of instrument mask.

BW

EL

c. Remove the instrument cluster mounting screws.

d. Flip the instrument cluster, disconnect the instrument
cluster connectors, and remove the instrument cluster
assembly.
