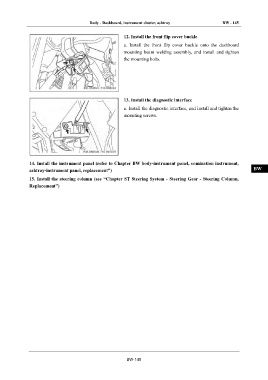

Body - Dashboard, instrument cluster, ashtray BW - 145

12. Install the front flip cover buckle IN
a. Install the front flip cover buckle onto the dashboard
mounting beam welding assembly, and install and tighten DI
the mounting bolts.
EG

TR

13. Install the diagnostic interface
AX
a. Install the diagnostic interface, and install and tighten the

mounting screws.
FR

ST

BR

14. Install the instrument panel (refer to Chapter BW body-instrument panel, comination instrument,
BW
ashtray-instrument panel, replacement”)

15. Install the steering column (see “Chapter ST Steering System - Steering Gear - Steering Column,
Replacement”) EL

BW-145
