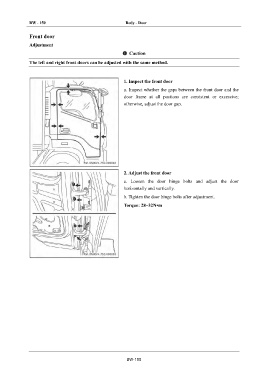

Page 1388 - Foton Workshop Manual - Auman EST-M

BW - 150 Body - Door

Front door
Adjustment
Caution

The left and right front doors can be adjusted with the same method.

1. Inspect the front door
a. Inspect whether the gaps between the front door and the
door frame at all positons are consistent or excessive;
otherwise, adjust the door gap.

2. Adjust the front door

a. Loosen the door hinge bolts and adjust the door
horizontally and vertically.
b. Tighten the door hinge bolts after adjustment.
Torque: 28~32N•m

BW-150
