Body - Door BW - 153

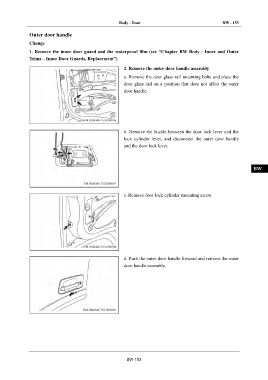

Outer door handle IN
Change
1. Remove the inner door guard and the waterproof film (see “Chapter BW Body - Inner and Outer DI
Trims – Inner Door Guards, Replacement”)
2. Remove the outer door handle assembly EG
a. Remove the door glass rail mounting bolts and place the
door glass rail on a position that does not affect the outer TR
door handle.
AX
FR
b. Remove the buckle between the door lock lever and the
ST
lock cylinder lever, and disconnect the outer door handle
and the door lock lever.
BR
BW
EL
c. Remove door lock cylinder mounting screw.
d. Push the outer door handle forward and remove the outer
door handle assembly.
BW-153
