Body - Door lock BW - 157

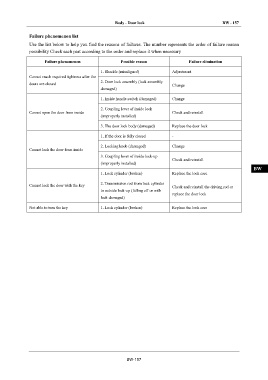

Failure phenomenon list IN
Use the list below to help you find the reasons of failures. The number represents the order of failure reason
possibility Check each part according to the order and replace it when necessary DI

Failure phenomenon Possible reason Failure elimination
EG
1. Shackle (misaligned) Adjustment
Cannot reach required tightness after the
2. Door lock assembly (lock assembly
doors are closed
Change TR
damaged)

1. Inside handle switch (damaged) Change
AX
2. Coupling lever of inside lock
Cannot open the door from inside Check and reinstall
(improperly installed)
FR
3. The door lock body (damaged) Replace the door lock

1. If the door is fully closed - ST

2. Locking knob (damaged) Change
Cannot lock the door from inside
BR
3. Coupling lever of inside lock-up
Check and reinstall
(improperly installed)
BW
1. Lock cylinder (broken) Replace the lock core

2. Transmission rod from lock cylinder
Cannot lock the door with the key Check and reinstall the driving rod or EL
to outside lock-up (falling off or with
replace the door lock
lock damaged)

Not able to turn the key 1. Lock cylinder (broken) Replace the lock core

BW-157
