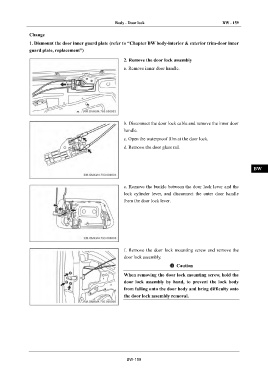

Body - Door lock BW - 159

Change IN

1. Dismount the door inner guard plate (refer to “Chapter BW body-interior & exterior trim-door inner
guard plate, replacement”) DI
2. Remove the door lock assembly
a. Remove inner door handle. EG

TR

AX

FR
b. Disconnect the door lock cable and remove the inner door
handle.
ST
c. Open the waterproof film at the door lock.
d. Remove the door glass rail.
BR

BW

e. Remove the buckle between the door lock lever and the EL
lock cylinder lever, and disconnect the outer door handle
from the door lock lever.

f. Remove the door lock mounting screw and remove the
door lock assembly.
Caution

When removing the door lock mounting screw, hold the
door lock assembly by hand, to prevent the lock body
from falling onto the door body and bring difficulty onto
the door lock assembly removal.

BW-159
