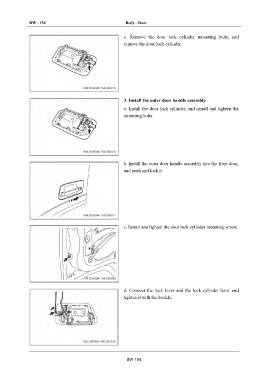

BW - 154 Body - Door

e. Remove the door lock cylinder mounting bolts, and
remove the door lock cylinder.

3. Install the outer door handle assembly

a. Install the door lock cylinder, and install and tighten the
mounting bolts.

b. Install the outer door handle assembly into the front door,
and push and lock it.

c. Install and tighten the door lock cylinder mounting screw.

d. Connect the lock lever and the lock cylinder lever and
tighten it with the buckle.

BW-154
