P. 1390

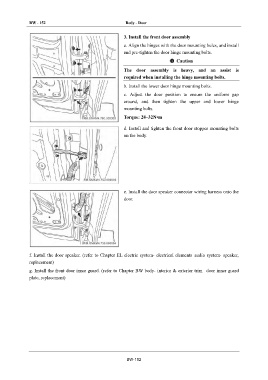

BW - 152 Body - Door
3. Install the front door assembly
a. Align the hinges with the door mounting holes, and install
and pre-tighten the door hinge mounting bolts.
Caution
The door assembly is heavy, and an assist is
required when installing the hinge mounting bolts.
b. Install the lower door hinge mounting bolts.
c. Adjust the door position to ensure the uniform gap
around, and then tighten the upper and lower hinge
mounting bolts.
Torque: 28~32N•m
d. Install and tighten the front door stopper mounting bolts
on the body.
e. Install the door speaker connector wiring harness onto the
door.
f. Install the door speaker. (refer to Chapter EL electric system- electrical elements–audio system- speaker,
replacement)
g. Install the front door inner guard. (refer to Chapter BW body- interior & exterior trim –door inner guard
plate, replacement)
BW-152
