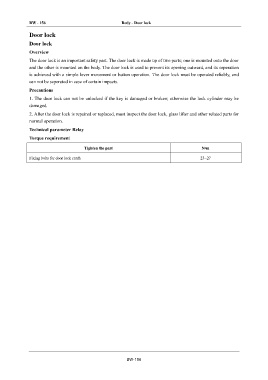

BW - 156 Body - Door lock

Door lock

Door lock
Overview
The door lock is an important safety part. The door lock is made up of two parts; one is mounted onto the door
and the other is mounted on the body. The door lock is used to prevent its opening outward, and its seperation
is achieved with a simple lever movement or button operation. The door lock must be operated reliably, and
can not be seperated in case of certain impacts.
Precautions

1. The door lock can not be unlocked if the key is damaged or broken; otherwise the lock cylinder may be
damaged.
2. After the door lock is repaired or replaced, must inspect the door lock, glass lifter and other related parts for
normal operation.
Technical parameter Relay

Torque requirement

Tighten the part N•m
Fixing bolts for door lock catch 23~27

BW-156
