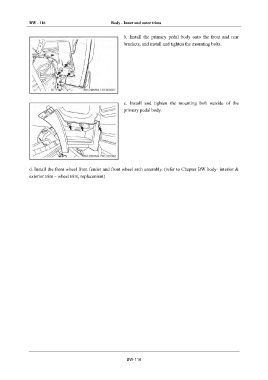

Page 1354 - Foton Workshop Manual - Auman EST-M

BW - 116 Body - Inner and outer trims

b. Install the primary pedal body onto the front and rear
brackets, and install and tighten the mounting bolts.

c. Install and tighten the mounting bolt outside of the
primary pedal body.

d. Install the front wheel front fender and front wheel arch assembly. (refer to Chapter BW body- interior &
exterior trim – wheel trim, replacement)

BW-116
