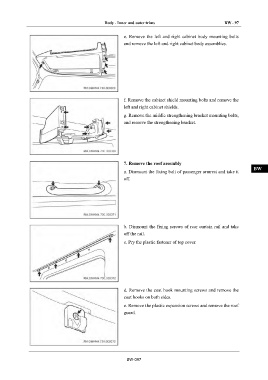

Body - Inner and outer trims BW - 97

e. Remove the left and right cabinet body mounting bolts IN
and remove the left and right cabinet body assemblies.
DI

EG

TR

f. Remove the cabinet shield mounting bolts and remove the
AX
left and right cabinet shields.

g. Remove the middle strengthening bracket mounting bolts,
FR
and remove the strengthening bracket.

ST

BR

7. Remove the roof assembly
BW
a. Dismount the fixing bolt of passenger armrest and take it

off.
EL

b. Dismount the fixing screws of rear curtain rail and take
off the rail.

c. Pry the plastic fastener of top cover.

d. Remove the coat hook mounting screws and remove the

coat hooks on both sides.

e. Remove the plastic expansion screws and remove the roof

guard.

BW-097
